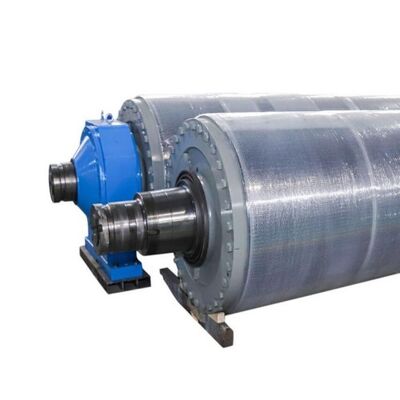

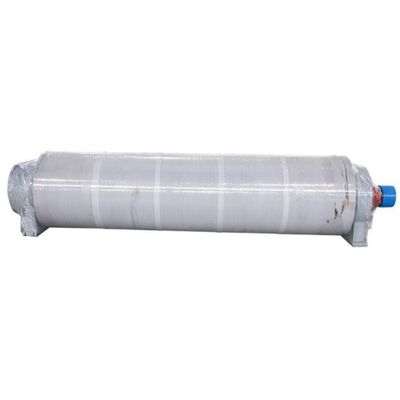

Paper Machine Vacuum Suction Roll with Up to 1.200 mm Diameter and 5 m Length for Max 60 kN/m Pressure

The Vacuum Suction Roll is a critical component in paper making machines, used in both the wire part (as wire suction roll) and press part (as pick-up roll, felt suction roll, or press suction roll) of the paper manufacturing process.

Our suction rolls are available in one-, two- or three-chamber designs, with three-chamber models specifically designed for paper web transfer between wire and press sections. Constructed with either bronze or stainless steel tubes and stainless steel chambers, these rolls accommodate diameters up to 1,200 mm, lengths to 5 meters, and maximum pressures of 60 kN/m.

• Precision-engineered roll surface chamber
• Bearing bodies (operating side flanged for vacuum connection)
• Adjustable slides for suction width control
• Integrated inner shower for slide lubrication
• Worm gear for precise chamber positioning
• Air distribution system for slide load management

Available with various specialized coatings to meet specific operational requirements:

• Rubber or polyurethane
• Teflon, copper-plated, or chrome-plated
• Ceramic or plasma-sprayed (stainless steel, chromium-nickel, tungsten-carbide, etc.)
• Custom blind-bored or grooved configurations

Optional roll blankets available from our premium suppliers through prior customer agreement.

Founded in 2008, Huatao Group has grown into a leading global supplier of industrial rollers with over 15 years of specialized experience. Our products serve diverse industries including paper manufacturing, rubber & plastic processing, and nonwoven fabric production.

Paper Industry Solutions: Comprehensive range including forming rollers, vacuum couch rollers, press rollers, dryer cylinders, and specialized finishing rollers.

Plastic & Rubber Applications: Precision rollers for processing lines including chill rollers, stretching rollers, treatment rollers, and winding systems.

Nonwoven Fabric Equipment: Specialized rollers for production lines including cylinder rollers, guide rollers, and finishing rollers.

With products exported to 96 countries, Huatao Group combines innovative engineering with deep industry knowledge to deliver customized solutions. We carefully match each customer's unique requirements with the optimal manufacturing capabilities across our network of partner facilities.

Our commitment extends beyond product delivery - we ensure every customer experiences reliable performance and ongoing support throughout the equipment lifecycle.
