Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Sản phẩm giấy: | Giấy kraft, Bảng thử | Trọng lượng cơ bản: | 110 150 g / m2 |
|---|---|---|---|
| Tính trọng lượng cơ sở: | 112g / m2 | Cắt chiều rộng: | 3300mm |
| Chiều rộng cuộn: | 3350mm | Chiều rộng dây: | 3800mm |
| Tốc độ vòi phun: | 3650mm | tốc độ làm việc: | 150m / phút |
| tốc độ thiết kế: | 200m / phút | Thu thập dữ liệu tốc độ: | 25m / phút |
| Sức chứa giả định: | 68t / d (112gsm, 150m / phút, 3300mm, hiệu suất 100%) | Máy đo: | 4350mm |
| Loại ổ: | Ổ đĩa chuyển đổi tần số AC | ||
| Làm nổi bật: | máy giấy kraft,máy giấy đa xi lanh dây đôi,máy làm giấy kraft có bảo hành |
||

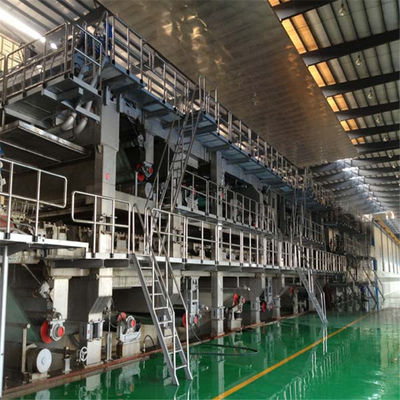

2800 / 500 Double - wire Multi-Cylinder Kraft Paper Machine Test Liner Board Paper Machine
Application:
Equipments technology flow:

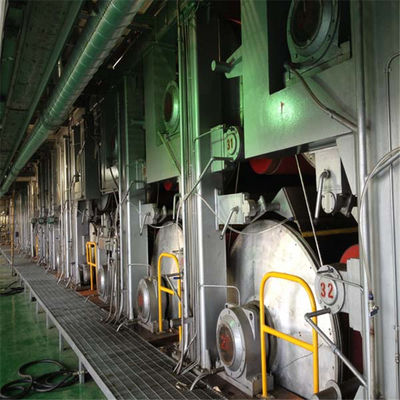

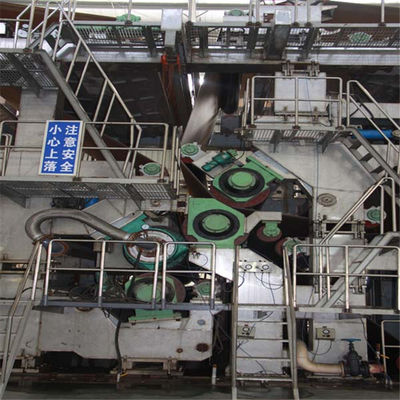

Air cushion headbox---double wire (top ply and base wire)--- 750/φ800 scution pre-press---φ1320 double felt jumbo roll press---φ1320 double felt jumbo roll press--- front dry:20sets of Φ1800mm dryer (arrangement is 6+8+8)--- φ800/φ800 sizing machine---rear dry section: 6sets of Φ1800mm dryers (6)---double roll hard calender---B/M (reservated position)---horizontal rolls-type drum reeling machine.
Paper product: Kraft paper, Test Liner board
Basis weight: 110～150 g/m2
Calculate basis weight: 112g/m2
Trim width: 3300mm
Reel width: 3350mm
Wire width: 3800mm
Nozzle speed: 3650mm
Working speed: 150m/min
Design speed: 200m/min
Crawl speed: 25m/min
Nominal capacity: 68t/d (112gsm, 150m/min, 3300mm, 100% efficiency)
Gauge: 4350mm
Drive type: AC frequency converter sectional drive
Arrangement: single-layer layout, right hand machine (standing at reel machine and looking toward machine direction, drive side is on right hand side)
Top ply: pulp %
Base ply: pulp %
Top ply: 40～60g/m2 pulp consistency:0.3～0.6%
Base ply: 70～90g/m2 pulp consistency:0.5～1.0%
Dryness into press: ≥22%
Dryness into dryer: ≥44%
Dryness into sizing machine: 92%
Dryness out of sizing machine: 65~70%
Sizing glue quantity: 2.5~3g/m2(each surface), glue solid content: 8~12%
Dryness of finished paper: 92%
Horizontal shrinking percentage (average): ≤4%
Horizontal moisture deficit: ≤±7.5%
Horizontal grammage deficit: ≤±1.0%
Dryness when every ply paper recombinating: ≥12%
Forming wire 8kN/m 7kN/m
felt 5kN/m 4kN/m
dry wire 5kN/m 3kN/m
Requirement: pure, colorless, sand-removed.
Pressure: 3MPa,0.4MPa two types
PH valve: 6-8
Motor voltage: 380/220±5%
Control voltage: 24V
Frequency: 50HZ±1%
Steam pressure:Max. working pressure of dryer: 0.5MPa
Nominal pressure: 16Mpa
Set working pressure: 14Mpa
Filtering oil accuracy: 20μm
Supplying oil temperature: ≤30℃
