| Công suất định mức: | 3-37 Kw | Lực kích thích tối đa: | 603 kN |
|---|---|---|---|
| Thời điểm làm việc: | 416-7832kg/Cm | Tốc độ: | 750, 1000, 1500 phút |
| độ dày: | 50-250mm | độ cứng: | 200-400 HB |
| Làm nổi bật: | Alloy steel jaw crusher plate,Enhanced tooth profile crusher plate,Efficient stone processing wear parts |
||
Product Description
High manganese jaw plates are widely used in heavy-duty primary crushing systems where hard rock processing requires strong impact resistance and stable wear performance. Manufactured from Mn13 and Mn18 materials, these crusher wear plates provide superior toughness and reliable abrasion resistance during continuous crushing operations. Their optimized tooth geometry improves material flow and crushing efficiency while reducing energy consumption and vibration. Available in custom sizes and profiles, these jaw crusher components are suitable for crushing granite, basalt, river stone, and iron ore. Advanced casting technology and precision machining ensure accurate installation, stable hardness, and long operational lifetime in mining and quarry applications.
Description of Mining Crushing Wear Parts
In crushing systems for mining, quarrying, aggregate making, recycling, and construction, crusher wear parts are critical consumable components. They directly determine crushing efficiency, output morphology, machine reliability, and total expense. HUATAO GROUP offers a full range of premium wear parts including jaw crusher jaw plates, impact crusher blow bars, and cone crusher mantle & concave. Crafted from high manganese steel, high chrome iron, alloy steel, and blends, our parts provide high abrasion resistance, impact toughness, and long service life under demanding working environments.
Crusher Type
Crushers are essential equipment in mineral processing plants, designed to reduce large rocks into smaller particles. Different types of crushers are used in various crushing stages, each with its own set of wear parts that require regular replacement. Below is an overview of common crusher types and their key consumable parts:
| Type | Main Application | Key Consumable Parts | Function of Consumable |
|---|---|---|---|
| Jaw Crusher | Primary crushing | Jaw Plate | Crushes rock by compressing it between two plates. Wears out regularly due to high abrasion. |
| Cone Crusher | Secondary crushing | Mantle & Concave | Mantle gyrates inside concave to crush materials. Both parts wear significantly. |
| Impact Crusher | Tertiary crushing | Blow Bar | Rotates at high speed to impact and break materials. Highly susceptible to |
1.1 Applicable Crusher Type: Jaw Crusher
1.2 Definition and Application:
The Jaw Plate is the primary wear component in a Jaw Crusher that comes into direct contact with materials. It consists of fixed and movable plates mounted on the jaw frame, used to crush hard materials such as rocks and ores through compressive force.
1.3 Advantages:
1.4 Common Materials:
1.5 Key Parameters and Specifications:
|
Thickness |
50‑250mm |
|
Length |
300‑2500mm |
|
Tooth Height |
20‑100mm |
|
Mounting Hole Spacing |
Customized per machine model |
|
Hardness |
200‑400 HB |
|
Tensile Strength |
≥850 MPa |
2.1 Applicable Crusher Type: Cone Crusher
2.2 Definition and Application:

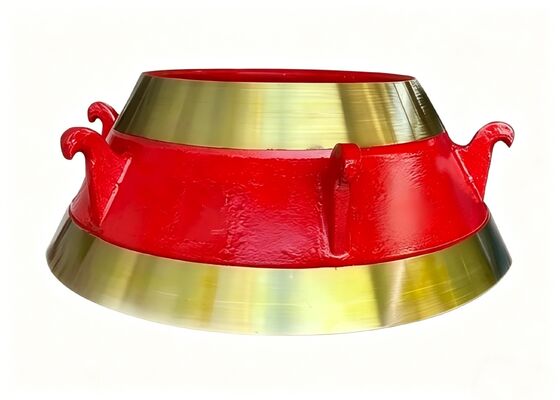

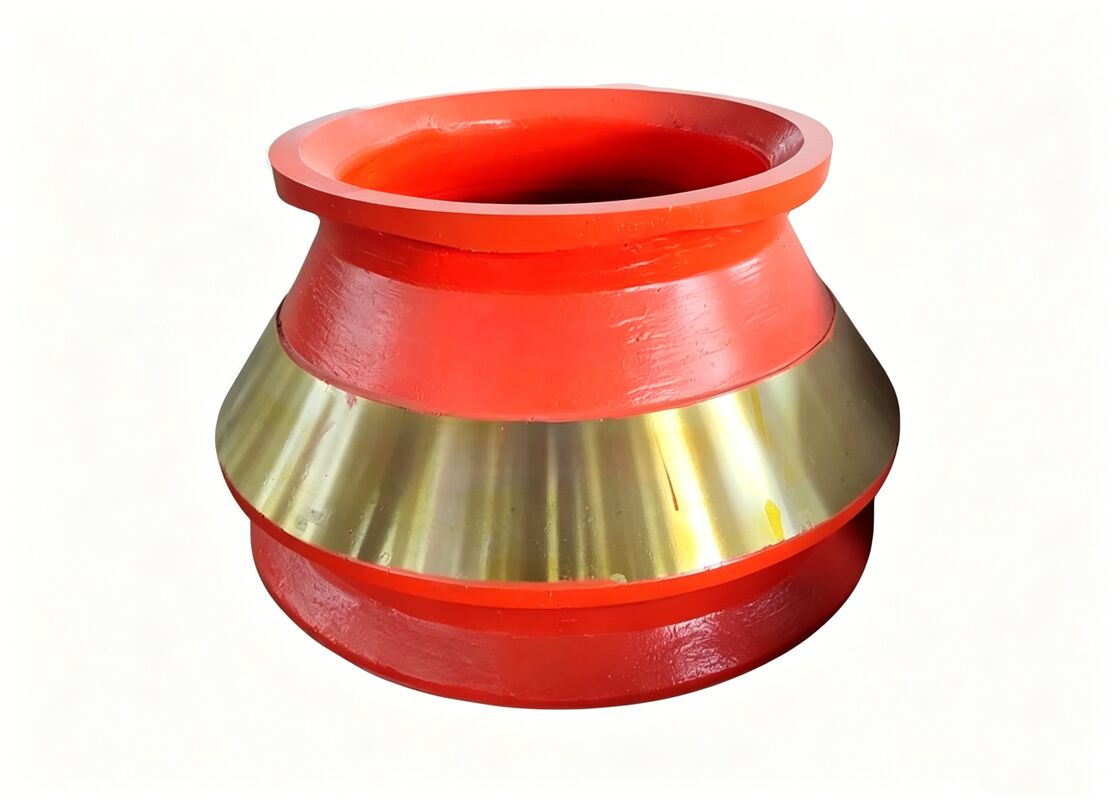

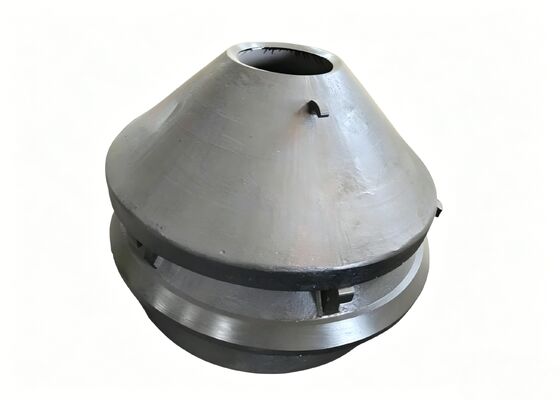

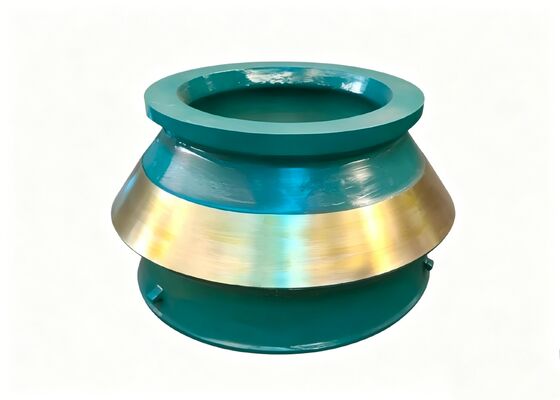

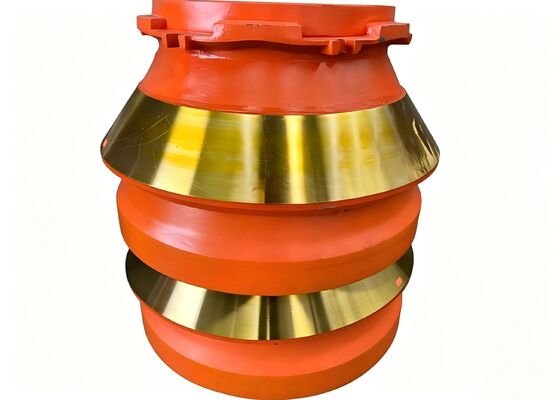

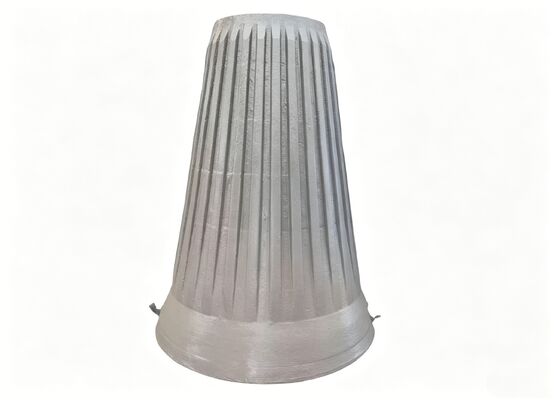

The Mantle and Concave are the core wear components of a Cone Crusher. The Mantle is mounted on the top of the main shaft and performs an eccentric gyrating motion. Together with the fixed Concave, they form the crushing chamber to achieve multi-layer compressive crushing of materials.
2.3 Advantages:
2.4 Common Materials:
2.5 Key Parameters and Specifications:
|
Component |
Outer Diameter Range |
Height Range |
Weight Range |
Hardness |
|
Mantle |
300 2000mm |
200 800mm |
50 5000kg |
220 380 HB |
|
Concave |
500 2500mm |
300 1000mm |
100 8000kg |
220 380 HB |
3.1 Applicable Crusher Type: Impact Crusher
3.2 Definition and Application:
The Blow Bar is a key impact component mounted on the rotor of an Impact Crusher. It crushes materials through high-speed rotational impact, suitable for medium to low hardness materials such as limestone, concrete, and construction waste.
3.3 Advantages:
3.4 Common Materials:
3.5 Key Parameters and Specifications:
|
Length |
200‑1800mm |
|
Width |
100‑400mm |
|
Thickness |
50‑200mm |
|
Weight |
5‑200kg |
|
Hardness |
50‑62 HRC (high-chrome material) |
|
Impact toughness |
≥10 J/cm² |
Featured Products & Related Accessories
In addition to the above consumables, we also supply a complete range of crusher screening and wear solutions:
A. Crusher Screens:
* Steel Crusher Screens – High tensile strength, ideal for heavy-duty screening applications.
* Rubber Screen Panels – Excellent abrasion resistance, reduces noise and plugging.
* PU Screen Panels (Polyurethane) – Superior wear life, flexibility, and resistance to blinding.
B. Why Choose Our Wear Parts?
* Material Excellence – Premium alloys and heat treatment processes.
* Precision Engineering – Custom-fit for major crusher brands
* Performance Guarantee – Consistent quality for extended uptime and lower cost per ton.
* Technical Support – Expert advice on part selection and maintenance optimization.
Standard Warranty: 12 months operating hours.
Quality Warranty: Resent with free cost once any quality problem.
Global Support: 24/7 technical assistance.
