Thông tin chi tiết sản phẩm:
Thanh toán:
|
| áp suất thức ăn: | 0,10-0,35MPa | Dung tích: | 40-100m3/giờ |
|---|---|---|---|
| Đường kính dòng chảy dưới: | 45mm | Đường kính tràn: | 80mm |
| Vật liệu lót: | PU chống mài mòn | kích thước cắt: | 30-100μm |
| Làm nổi bật: | ceramic lined hydrocyclone separator,mining slurry classification hydrocyclone,hydrocyclone dewatering mining wear parts |
||
Production Description:

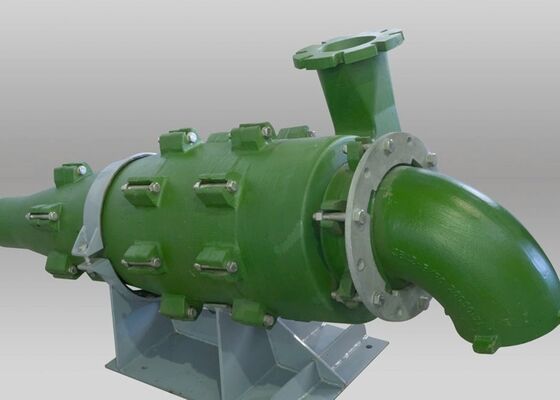

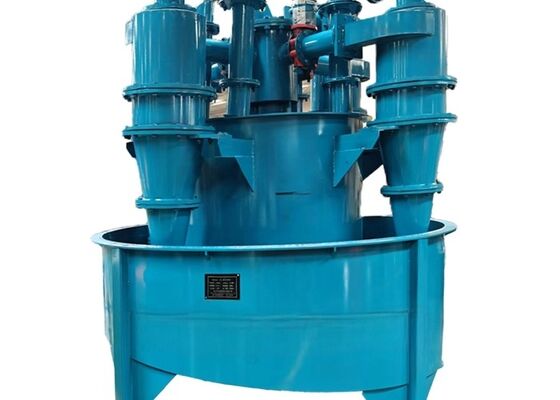

This industrial mining hydrocyclone separator is manufactured using wear resistant polyurethane material and advanced molding technology. The cyclone is designed for slurry classification concentration desliming and dewatering applications in mineral processing plants. Its high efficiency separation performance helps improve flotation recovery rates and grinding circuit productivity. The hydrocyclone contains no moving parts which significantly reduces mechanical failures and maintenance costs. The replaceable vortex finder and apex components provide convenient maintenance and extended service life. This product is suitable for handling abrasive slurries including quartz sand copper tailings gold ore pulp and coal slurry under high pressure working conditions.
Engineered for precision and reliability, our hydrocyclone delivers outstanding performance in classification and separation processes. The optimized internal structure ensures efficient slurry flow and stable operation. The materials used provide strong resistance to abrasion and chemical attack, ensuring long-term durability. The system’s simple design without moving parts reduces maintenance needs and operational costs. This makes it a practical solution for industries seeking efficient and reliable processing equipment.

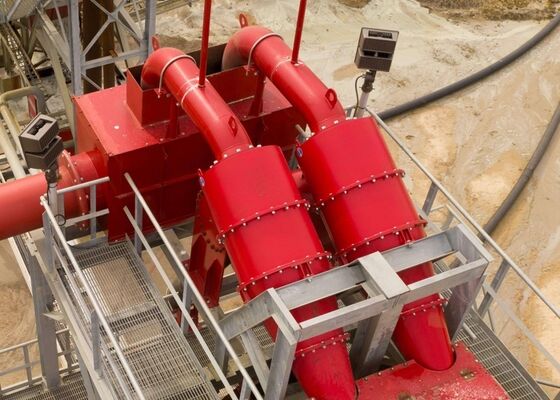

Mining hydrocyclones are commonly applied in gold ore, iron ore, copper ore, lead-zinc ore, lithium ore, silica sand, coal slurry, and tailings recovery systems. The equipment is suitable for classification, concentration, desliming, dewatering, and fines recovery in both wet grinding and beneficiation processes.
The slurry is fed into the cyclone tangentially under pressure, generating a high-speed rotating flow inside the cyclone body. Under centrifugal force:
This continuous separation process provides accurate particle classification and improved grinding efficiency.
Hydrocyclones are widely used for wet classification of particles ranging from 10–200 microns in mining and mineral processing operations.
Advanced cyclone structure design improves particle separation accuracy and reduces misplaced particles.
Simple internal structure ensures low maintenance requirements and reliable long-term operation.
Optional polyurethane, ceramic, rubber, or high-chrome liners provide excellent abrasion resistance for highly abrasive slurries.
Capable of handling high slurry throughput while maintaining stable classification performance.
Optimized inlet design reduces turbulence and improves operational efficiency.
Compact structure occupies minimal floor space and allows quick replacement of wear parts.
| Model | Cyclone Diameter (mm) | Feed Pressure (MPa) | Capacity (m³/h) | Cut Size (μm) | Overflow Size | Underflow Size |
|---|---|---|---|---|---|---|
| FX-75 | 75 | 0.05–0.25 | 3–10 | 10–40 | 25 mm | 14 mm |
| FX-100 | 100 | 0.05–0.25 | 5–16 | 15–45 | 32 mm | 18 mm |
| FX-150 | 150 | 0.05–0.30 | 10–35 | 20–74 | 40 mm | 22 mm |
| FX-200 | 200 | 0.05–0.30 | 20–60 | 25–80 | 65 mm | 35 mm |
| FX-250 | 250 | 0.10–0.35 | 40–100 | 30–100 | 80 mm | 45 mm |
| FX-350 | 350 | 0.10–0.40 | 70–180 | 40–120 | 100 mm | 65 mm |
| FX-500 | 500 | 0.10–0.40 | 150–350 | 50–150 | 150 mm | 90 mm |

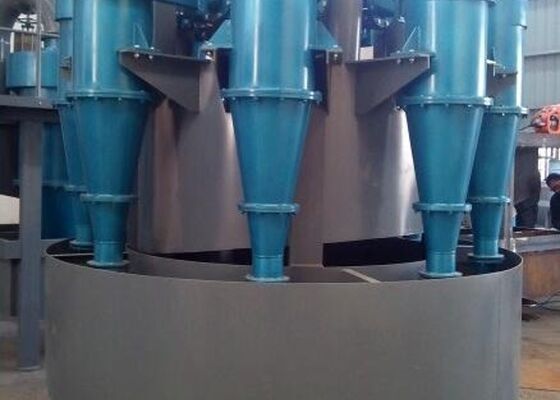

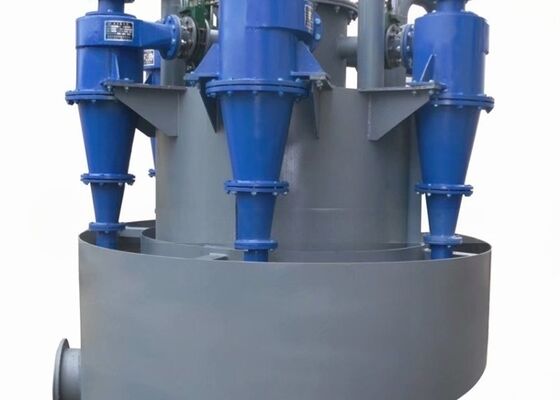

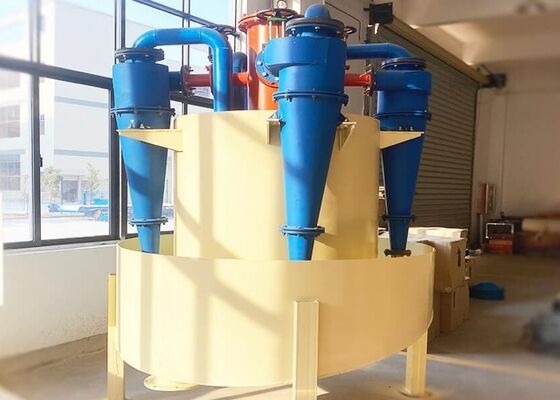

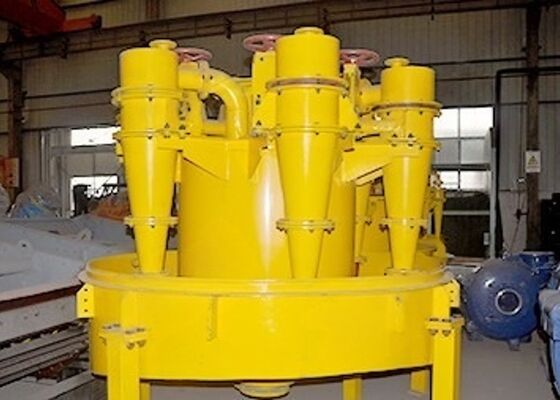

Customized models and cluster hydrocyclone systems are available according to customer requirements.
Polyurethane hydrocyclones are especially popular for mining applications because of their lightweight structure, corrosion resistance, and excellent wear life.
Ball Mill → Slurry Pump → Hydrocyclone → Overflow to Flotation → Underflow Return to Ball Mill
This closed-circuit grinding system improves grinding efficiency and particle size control in mineral beneficiation plants.
