Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Sản phẩm: | Rotor và Stator tinh chế hình nón | Từ khóa: | Tấm tinh chế hình nón, rôto tinh chế và stato |
|---|---|---|---|
| Vật liệu: | Hợp kim, Sắt đúc Chrome phủ, 17-4pH, đặc biệt SS | OD: | 450-800mm |
| độ cứng: | Tối đa 68HRC | máy phù hợp: | Máy lọc hình nón Vairous |
| Làm nổi bật: | conical refiner rotor for paper mill,paper mill stator replacement parts,paper making machine conical refiner |
||

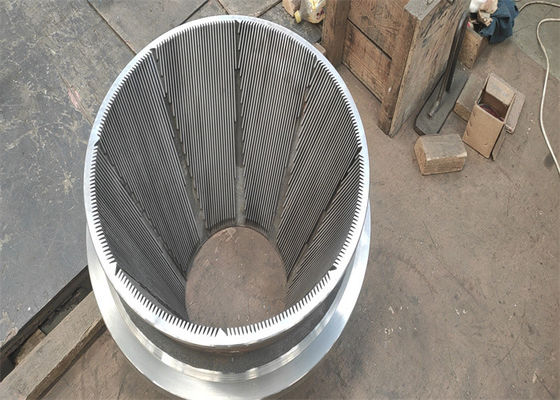

Conical Refiner Rotor and Stator for Paper Mill
Conical Refiner is mainly used for coarse beating refining and re-pulping of broke and waster paper. It is available for long fiber pulp such as cotton, wood, and . The equipment is furnished with an automatic control system and can beat with a constant power of constant energy consumption. The beating effect is stable.

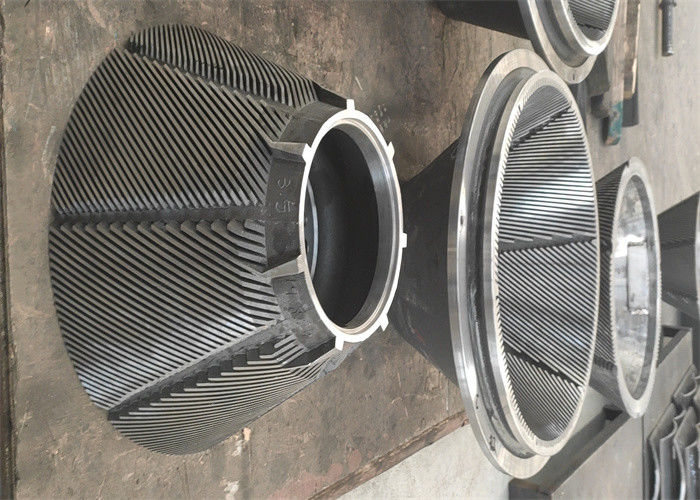

Conical Refiner construction of Rotor and stator is conical.
The pulp beating disc refiner rotor and stator is the "heart" of the double disc refiner and the conical refiner. In addition to the need for excellent wear resistance and impact toughness, the rationality of the tooth profile will directly affect the beating performance. "Three points for paper making, seven points for beating", to process different slurries, different indexes and the number of refiners in series should choose different tooth types. Therefore, the study of the relationship between the theory of specific blade edge load, the theory of specific surface load, rheological effect and beating performance, and the non-isolated understanding of the relationship between the various elements, is important to ensure the fiber bonding strength, filter performance, retention rate, quality of the finished paper and It is very important to save power consumption for beating.
Technical Parameters
| Product name | Conical Refiner Rotor and Stator for Paper Mill |
| Model | 450-800 |
| Material | Alloy,cast iron chrome coated,17-4PH,special S.S,high carbon S.S,High chrome alloy,etc |
| Diameters | 450 mm-800 mm |
| Hardness | 40-68HRC |
| Conical Degree | 40° |
| Suitable Refiner Machine/Defibrator | Andritz,Valmet,Voith |
| Applied Industry | Pulp and paper making |
Our Advantages
1.Wide range of metallurgies developed for industry needs.
2.It can be designed according to various of versions and requirements.
3.Custom designed plates are developed in shortest time.
4.Stronger plates for longer life.
5.Increased Plate Working Lifetime
6.Reduced Plate Breakage
7.Reduced Plate Plugging Problems
8.Reduced Refiner Plate Breaks
9.Lower Furnish Costs
10.Increased Refining Capacity
11.Energy Savings
