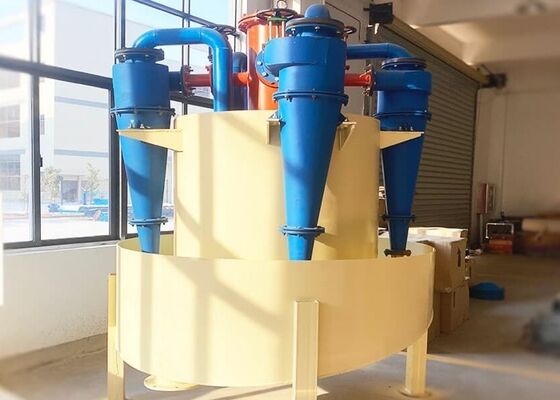

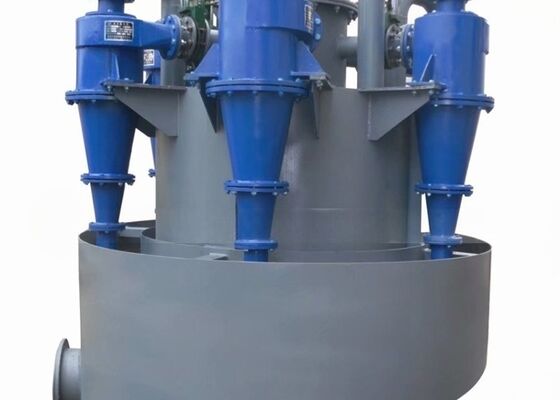

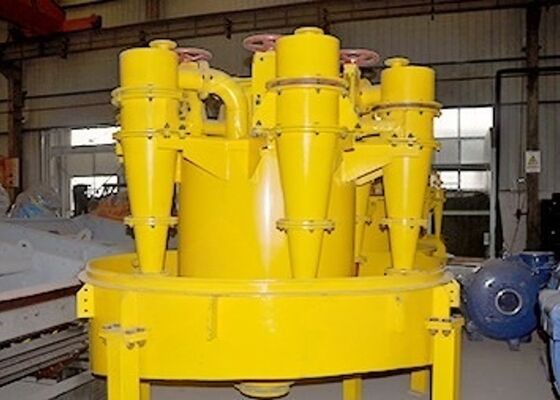

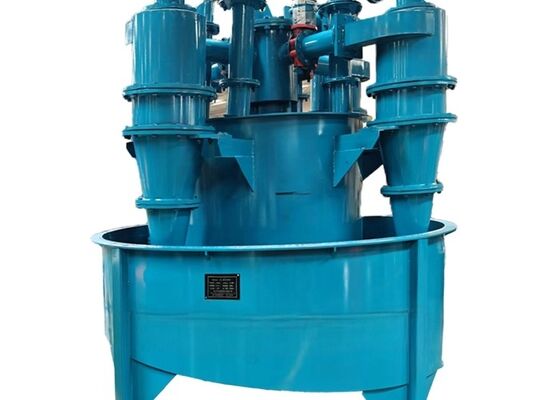

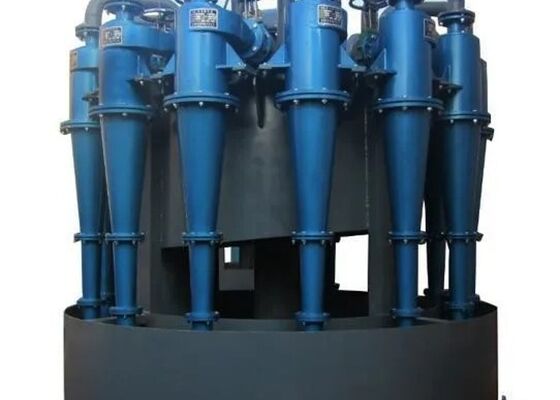

Mining Hydrocyclone Cluster System High Efficiency PU Cyclone For Tailings Recovery

Production Description:

The polyurethane mining hydrocyclone separator is specially designed for high efficiency classification in mineral beneficiation plants. Its durable PU structure provides exceptional wear resistance when processing abrasive slurries such as iron ore gold ore copper concentrate and silica sand. The cyclone can effectively separate coarse particles from fine particles under centrifugal force improving grinding circuit performance and mineral recovery efficiency. The smooth internal surface minimizes slurry turbulence and prevents material accumulation during long term operation. Different cone angles and vortex finder sizes are available to match various feed densities and processing capacities. This hydrocyclone is suitable for dewatering desliming and concentration applications in mining aggregate and coal washing industries.

Our hydrocyclone system is engineered to deliver consistent performance in classification and separation processes. The advanced design ensures stable vortex formation, improving efficiency. The use of high-quality materials provides resistance to abrasion and chemical exposure, ensuring durability. Its compact structure and low maintenance requirements make it suitable for continuous operation.

Mining hydrocyclones are commonly applied in gold ore, iron ore, copper ore, lead-zinc ore, lithium ore, silica sand, coal slurry, and tailings recovery systems. The equipment is suitable for classification, concentration, desliming, dewatering, and fines recovery in both wet grinding and beneficiation processes.

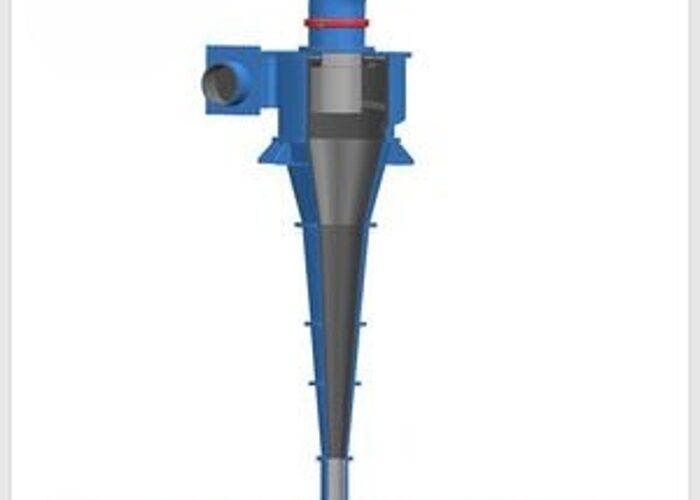

The slurry is fed into the cyclone tangentially under pressure, generating a high-speed rotating flow inside the cyclone body. Under centrifugal force:

• Coarse and heavy particles move toward the outer wall and discharge from the underflow outlet.
• Fine and light particles move upward through the vortex finder and exit from the overflow outlet.

This continuous separation process provides accurate particle classification and improved grinding efficiency.

• Grinding circuit classification
• Ball mill closed-circuit operation
• Fine particle recovery
• Tailings concentration

• Coal slurry classification
• Dense medium separation
• Fine coal recovery

• Sand washing
• Silica sand classification
• Fines recovery system

• Wastewater treatment
• Sludge dewatering
• Oil sand separation
• Soil washing systems

Hydrocyclones are widely used for wet classification of particles ranging from 10–200 microns in mining and mineral processing operations.

Advanced cyclone structure design improves particle separation accuracy and reduces misplaced particles.

Simple internal structure ensures low maintenance requirements and reliable long-term operation.

Optional polyurethane, ceramic, rubber, or high-chrome liners provide excellent abrasion resistance for highly abrasive slurries.

Capable of handling high slurry throughput while maintaining stable classification performance.

Optimized inlet design reduces turbulence and improves operational efficiency.

Compact structure occupies minimal floor space and allows quick replacement of wear parts.

Customized models and cluster hydrocyclone systems are available according to customer requirements.

• Polyurethane (PU)
• Ceramic Lined
• Rubber Lined
• High Chrome Alloy
• Ni-hard Material

Polyurethane hydrocyclones are especially popular for mining applications because of their lightweight structure, corrosion resistance, and excellent wear life.

• Excellent abrasion resistance
• Long service life
• Lightweight structure
• Corrosion resistant
• Easy liner replacement
• Reduced maintenance downtime
• Suitable for highly abrasive ore slurry

Ball Mill → Slurry Pump → Hydrocyclone → Overflow to Flotation → Underflow Return to Ball Mill

This closed-circuit grinding system improves grinding efficiency and particle size control in mineral beneficiation plants.

• Professional mining equipment manufacturer
• Rich export experience in global mining projects
• OEM & customized production available
• Strict quality inspection before shipment
• Fast delivery and technical support
• Complete wear spare parts supply

To provide an accurate quotation, please kindly confirm the following information:

1. What material will be processed?
2. Required processing capacity (m³/h)?
3. Feed particle size and desired overflow size?
4. Slurry concentration and density?
5. Operating pressure?
6. Required material: PU, ceramic, rubber, or metal?
7. Single cyclone or cyclone cluster?
8. Application: classification, desliming, dewatering, or concentration?
9. Installation drawing or existing system details?

• Standard export wooden case or steel frame packaging
• Suitable for sea freight, air freight, and container transportation
• Fast delivery for standard models
• OEM logo and customized color available
