| Đường kính dây: | 0,0014-0,0090 inch | ||
|---|---|---|---|
| Làm nổi bật: | 0.0014-0.0090 inch Wire Diameter Wire Screen,High Wear Resistance Grommet Screen,Material Screening Rotex Replacement Screen |
||

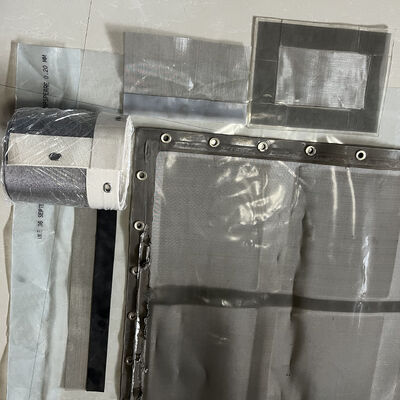

HUATAO Grommet Screens stand out as premium industrial wire solutions, specifically engineered to integrate seamlessly with Rotex® separators—a key advantage for operations relying on this equipment. Crafted from top-grade stainless steel (304, 304L, 316, 316L), these screens offer exceptional resistance to corrosion, acids, and alkalis, making them a reliable choice for harsh settings like mining and chemical processing.
What truly sets them apart is their reinforced edge design: options include black PU strips for general use, transparent FDA/EC-compliant PU strips for food-safe applications, or folded wire mesh edges for high-temperature environments above 80°C. This versatility ensures they adapt to diverse operational needs, while customizable mesh counts (14-230), wire diameters (0.0014-0.0090 inch), and open areas (46%-76.4%) allow precise tailoring to specific material separation requirements.
Installation is streamlined thanks to pre-fitted grommets, reducing downtime during replacements, and their robust build extends service life by minimizing wear—ultimately boosting productivity and cutting maintenance costs.
| Parameter | Specification |
|---|---|
| Mesh Material | Stainless Steel 304, 304L, 316, 316L |
| Edge material | Generally reinforced strips are made of PU, canvas, silica gel, etc. |
| Mesh type | Woven mesh |
| Mesh count | 14-230 |
| Wire diameter | 0.0014-0.0090 inch |
| Open area | 46.0%-76.4% |
| Item | Mesh Size | Wire Size (in.) | Microns | Open Area % |
|---|---|---|---|---|
| 1 | 14 | 0.009 | 1580 | 76.4 |
| 2 | 16 | 0.009 | 1360 | 73.3 |
| 3 | 18 | 0.009 | 1180 | 70.2 |
| 41 | 230 | 0.0014 | 74 | 46 |
Wooden box package for secure shipping and handling.
| Product Type | Product Type |
|---|---|
| Urethane Screen | Tufflex Screen |
| Polyurethane Dewatering Screen Mesh | WS 85 Modular Screen |
| Polyurethane Screen Panels | Rotex Replacement Screens |
| Rubber Screen Panel | Vibrating Screen Mesh |
| Self cleaning Wire Mesh | Shale Shaker Screen |
