Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Tùy chỉnh cao su Crownning mềm Calender cuộn dầu lưu thông | Từ khóa: | Con lăn bơi, Con lăn lịch mềm, Con lăn lịch mềm |
|---|---|---|---|
| Chất liệu vỏ: | rèn thép 45 # | Độ cứng của vỏ: | 91±2 bờ D |
| Loại bìa: | sự kết hợp TRUNG QUỐC Andritz Jalon Vàng | Vỏ bên trong: | tinh chỉnh Ra0.4 |
| độ nhám bề mặt cuộn: | Ra0.1 ừm | Độ chảy bề mặt cuộn: | ≤0,02mm |
| Làm nổi bật: | Vòng cuộn cao su theo yêu cầu,Máy cuộn dầu công nghiệp,Vòng cuộn mềm 91 Shore D |
||

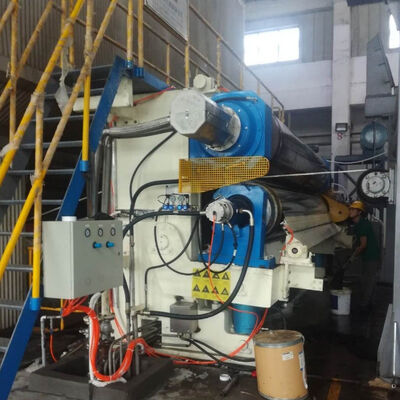

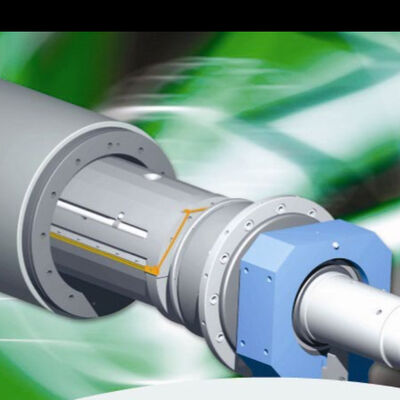

Soft Calender roll comprises a massive steel shaft, steel shell and fixed bearing arrangement on the shaft. The hydraulic hoses are equipped with fast couplings.
The oil pressure between the shaft and shell automatically controls against linear load to maintain uniform linear pressure distribution through the entire nip. Crown correction of the roll can be manually controlled from the control panel, primarily used in the calender machine of the paper machine line.
| Shell material | forge steel 45# |
|---|---|
| blended face length length | icustomized |
| Cover width | customized |
| Cover thickness | customized |
| Cover hardness | 91±2 Shore D |
| Cover type | combination CHINA Andritz Jalon Yellow |
| Shell inner | honing Ra0.4 |
| Roll surface runout | ≤0.02mm | era
| Metal seals | Germany | oner
| Roll balancing | 900 m/min(G1.0) | Drive/method | Toothed belt drive AT20,Z=63 |
Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper,bard, rubber & plastic industry, nonwoven fabric industries with over 15 years of experience.
Forming roller, vacuum couch roller, dandy roller, Breast Roller, press roller, stone roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, Works spreader roller, embossing roller.
Chill roller, MDO Preheating Roller, MDO nip roller, MDO stretching Roller, cooling roller, corona treater roller, Corona treatment nip roller, flame roller, carbon fiber contact roller, carbon fiber tension roller, carbon fiber nip roller, winding core, coating drum, coolingometry drum, spreader roller, anilox roller, calender roller, embossing roller.
Cylinder roller, doffer roller, carbon fiber guide roller, embossing roller, cooling roller, spreader roller.
With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than Kun 96 countries with a good reputation.
Huatao understands that each customer may have different requirements, which cannot be met from one factory, but we can meet them. We are also familiar with domestic factory advantages with matching superior quality and.expand help customers not walk the bend road. We pursue: eachream customer is buying and using HUATAO products with a rest assured heart and service is never end.
