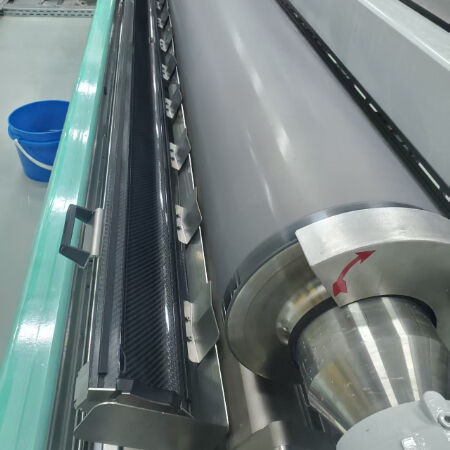

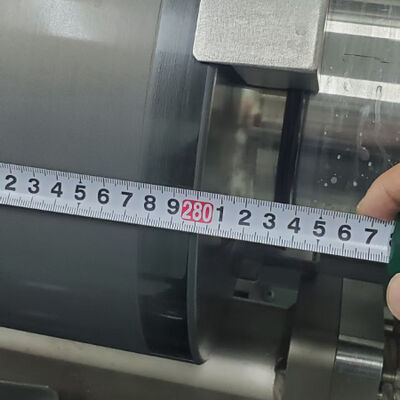

Ceramic Coated Gravure Roller for High Precision Film Coating

Ceramic Coated Gravure Roller High Precision Film Coating

Introduction of Cermic Gravure Roller  :

1. Advanced Coating Technology for Superior Durability

• Enhanced Strength: The ceramic layer exhibits high structural integrity, resisting deformation even under prolonged high-pressure operation.
• Ultra-Density: Minimized porosity prevents ink or coating leakage, ensuring uniform transfer and reducing waste.
• Exceptional Hardness: Significantly higher hardness than traditional metal rollers, extending service life by 30%–50% in high-speed production environments.

2. High-Precision Laser Engraving for Customization

• Diverse Mesh Shapes: Customizable mesh geometries (e.g., hexagonal, quadrangular) to adapt to specific ink or coating properties.
• Arbitrary Line Counts & Angles: Supports line numbers ranging from low (for large-area coatings) to ultra-high (for fine printing), with adjustable arrangement angles (e.g., 30°, 45°, 60°) to optimize transfer efficiency and pattern clarity.

3. 30% Differentiation: Key Competitive Edge

• Higher Transfer Accuracy: The combination of dense ceramic coating and precise laser engraving reduces dot gain by up to 30%, ensuring sharper images and more consistent color reproduction.
• Faster Production Adaptability: The wear-resistant coating maintains stability even in high-speed (≥600m/min) production lines, reducing downtime for maintenance by 30%.
• Broader Material Compatibility: Effectively handles aggressive inks (e.g., solvent-based, UV-curable) and high-viscosity coatings, expanding application scenarios in packaging, textiles, and industrial coatings.

Application of  Cermic Gravure Roller :

widely used in carton ink printing machines in the packaging and printing industry, various flexographic printing machines, anodized aluminum, gold and silver cards, various composite films, lithium batteries and precision coating machines in the carbon ribbon industry, etc.

1. The high-precision roller has the performance of high-speed and high-efficiency operation.

2. The denser, finer and stronger and wear-resistant ceramic coating ensures a smooth and smooth surface, meeting the needs of high line count mesh engraving.

3. Thinner mesh walls and optimal opening to depth ratio allow as much volume as possible per unit area.

4. The smooth mesh inner wall enables the anilox roller to have excellent release and transfer properties, obtaining more and more uniform transfer layers.

5. Precise mesh pattern accuracy and uniform mesh volume enable precise and controllable transfer volume.

6. A variety of network types can be selected to meet the needs of different transfer volumes.

product specifications of Cermic Gravure Roller:

Quality accuracy of Cermic Gravure Roller:

Coating porosity: 1-3%

Coating hardness: HV0.3≥1200

Circle runout: 0.005

Cylindricity: 0.01

Dynamic balancing quality level: G2.5

The selection of the appropriate texture volume is based on the different properties of the equipment (scraping method, working accuracy and running speed, etc.), the characteristics of the ink or glue, the printing materials with different ink-absorbing or glue properties, and the graphics and text on the flexographic printing plate. Determined by the different ink volumes required, and then refer to the "Anilox Roller Mesh Geometric Parameters and Volume Table" to select the appropriate anilox specifications. Mesh types with different shapes and transfer volumes can be designed and customized according to special needs.
